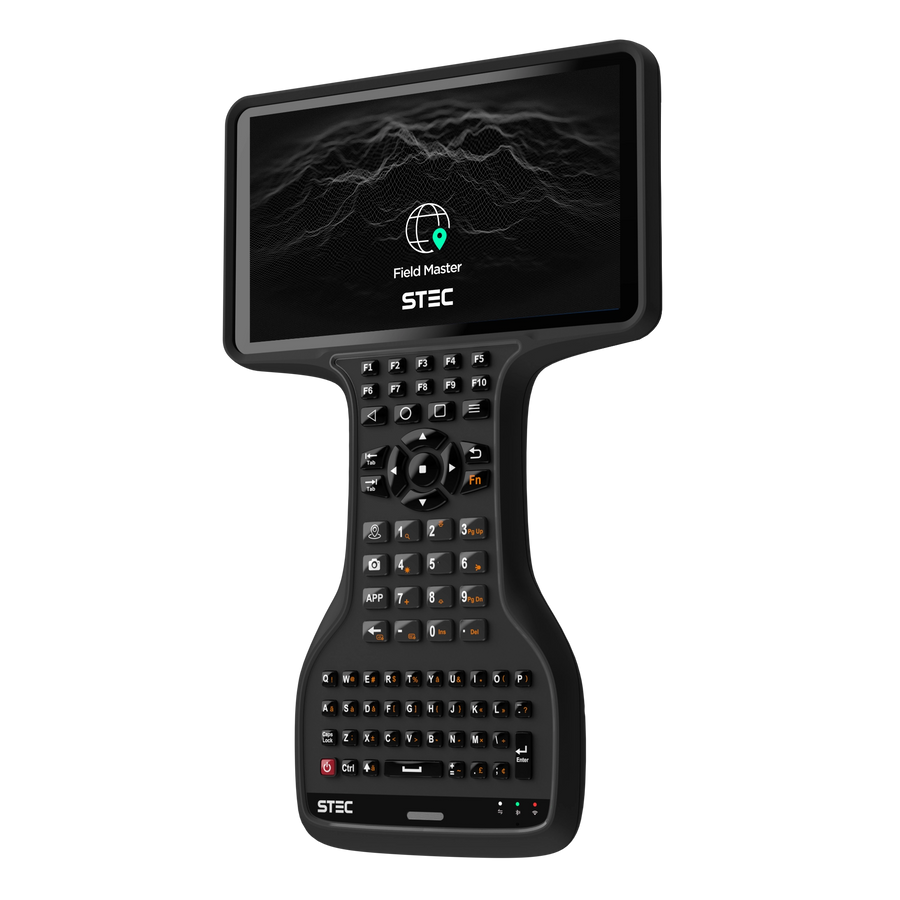

    STEC S Pad – Rugged Android Controller with Full Keyboard

    The STEC S Pad is a rugged Android field controller with a full QWERTY keyboard, 7-inch sunlight-readable screen and IP67 protection. It pairs with STEC GNSS receivers and robotic total stations to keep data collection and stakeout fast and comfortable on site. Buy or hire from Tri-Site Survey Equipment.

    Regular Price £1.00
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • PayPal

    Product Features

    Glove-friendly, ideal for one-hand operation. Easy data entry in all conditions

    Full alphanumeric buttons with illumination

    Android 14 operating system. Access Google Play store apps

    Works for GNSS and Robotic Total Station

    Detailed Specifications

    The STEC S Pad is a rugged Android controller built around a 7-inch FHD display and a full 64-key QWERTY keyboard, giving you fast, reliable data entry in conditions where a touchscreen alone falls short, whether that's pouring rain, thick gloves or bright direct sunlight. Running Android 14 on a powerful 8-core processor with 6GB RAM and 128GB storage (8GB/256GB optional), it has the performance to run demanding field software smoothly while staying responsive throughout a full day's work.

    One controller, more solutions: the S Pad is designed to work seamlessly across both GNSS rover and robotic total station workflows, so you're not carrying separate hardware for different instrument types. The 7-inch screen, rated to 1000 nits and protected by Corning Gorilla Glass, stays clearly readable outdoors, and a high-capacity 10500mAh battery keeps you working through long sessions without reaching for a charger. Built to an IP67 rating with a 1.5m drop rating and an operating range of -30°C to +65°C, it's engineered to handle demanding UK site conditions across all four seasons.

    System
    • Qualcomm Snapdragon SDM632, 8-core, 1.8GHz
    • Android 10
    • 4GB RAM, 64GB storage
    Screen & Camera
    • 8-inch IPS display, 1280×800
    • 13MP rear camera with flash and autofocus, 5MP front camera
    GNSS
    • GPS, GLONASS, BeiDou, Galileo tracking
    • Single-point accuracy: 1–3m
    Connectivity
    • Dual Nano-SIM slot with GSM/WCDMA/TD-SCDMA/LTE-TDD/LTE-FDD support
    • WiFi 2.4G/5G (802.11 a/b/g/n/ac), Bluetooth 4.2
    • MicroSD card support up to 1TB
    • USB Type-C with Qualcomm Quick Charge
    Sensors
    • Light
    • Proximity
    • Gyroscope
    • Accelerometer
    • Gravity
    • Compass Sensors
    Battery
    • 9000mAh Li-ion: 12-hour working time
    Build
    • IP67 rated: survives a 1.5m drop onto concrete
    • Operating range: -20°C to +60°C
    • Dimensions: 598g, 235×146×13mm

    Keep up to date with Tri-Site News

    Use Cases

    Utility & Asset Mapping

    Construction Setting-Out & Stakeout

    Remote & Harsh-Environment Surveying

    Field Data Collection & Land Surveying
