• STEC S Net 10

    STEC S Net 10

    Vendor: STEC Type: GNSS Receivers

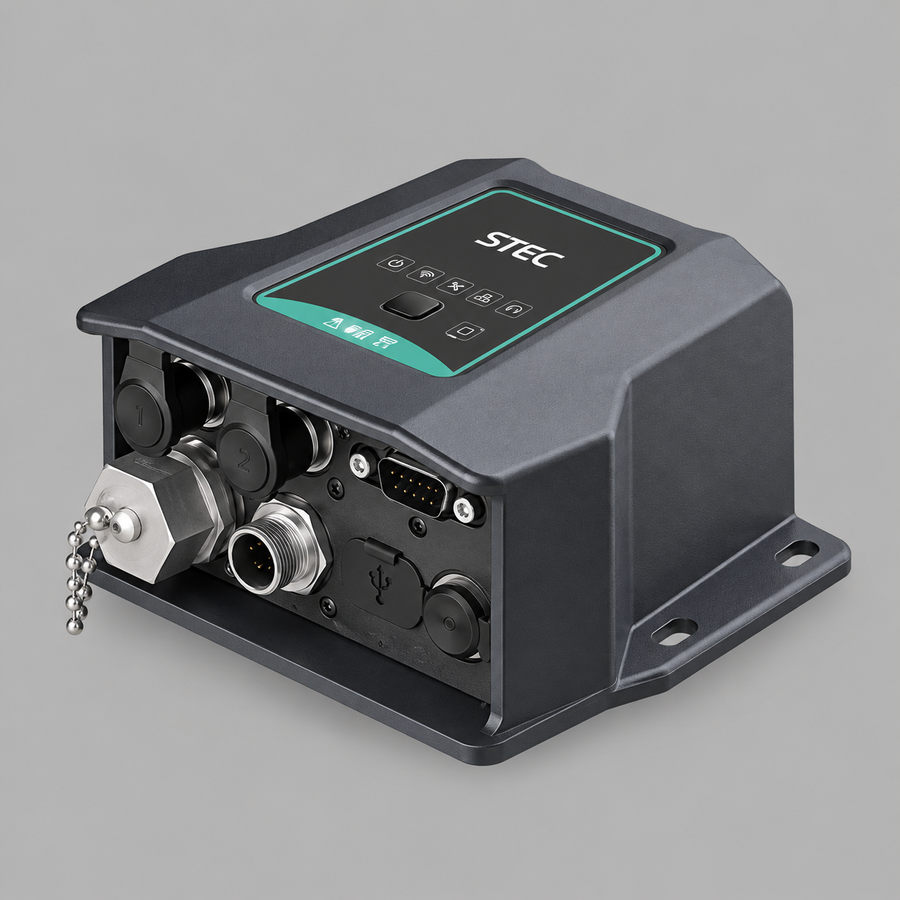

    The STEC S Net 10 is a robust GNSS reference station built for full-constellation, multi-frequency satellite tracking, delivering accurate, reliable data acquisition even in demanding, unattended deployments. With an internal battery backup, integrated 4G connectivity, and IP68-rated durability, it's built to keep running reliably whether it's powering a construction site base station or a permanent reference network installation.
    £1,675.00
    Options: S Net 10 - Unit
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Share to:
    View Full Details
    1 / 1
    Request a Demo | Hire This | Enquire About This Product →

    Product Features

    Full Constellation, Multi Frequency Performance

    Supports all major GNSS signals and channels — GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS, and L-Band — across 1,408 channels for comprehensive, reliable data acquisition.

    Internal Battery Backup for Emergency Operation

    A 3,400mAh internal battery provides up to 8 hours of operation during unexpected power outages, so data collection doesn't stop when mains power does.

    Integrated 4G Module with Expandable Storage


    Built-in 4G connectivity ensures real-time data transmission, with expandable storage via TF card supporting up to 128GB for extended, unattended logging.

    Rugged. IP68-Rated for Tough Environments

    Engineered for durability with 1.5m drop resistance and full IP68 water and dust protection, built to survive genuine field and site conditions.

    Detailed Specifications

    Full Constellation GNSS Performance
    • All major GNSS signals and channels across 1,408 channels
    • Fast, stable, efficient operation on Linux OS
    • Positioning rate up to 50Hz
    Reliable Power & Connectivity
    • Internal 3,400mAh battery for up to 8 hours of emergency backup
    • Integrated 4G connectivity for real-time data transmission
    • Up to 128GB expandable storage via TF card
    Built for Tough Environments
    • 1.5m drop resistance on hard surfaces
    • Full IP68 water and dust protection
    • Reliable operation from -40°C to 65°C
    Simple to Operate, Easy to Maintain
    • Web UI accessible on mobile, tablet, or PC — no additional software needed
    • Supports OTA remote updates and management
    • Reduces the need for on-site visits to maintain or upgrade
    System
    • OS: Dual-core A7 + M4 Linux
    • RAM: 1GB | ROM: 32GB
    Satellite Performance
    • Channels: 1408
    • GPS: L1C/A, L2C, L2P(Y), L5
    • GLONASS: L1, L2
    • BeiDou: B1i, B2i, B3i, B1C, B2a, B2b
    • Galileo: E1, E5A. E5b, E6
    • QZSS: L1, L2, L5, L6 | SBAS: L1, L5 | IRNSS: L5 | L-Band: B2b-PPP, E6-HAS
    Accuracy
    • Code Differential: H 0.25m±1.0ppm, V 0.5m±1.0ppm (RMS)
    • Static: H 2.5mm±0.5ppm, V 3.5mm±0.5ppm (RMS)
    • Real-time Kinematic: H 6mm±1ppm, V 10mm±1ppm (RMS)
    • Network RTK: H 8mm±0.5ppm, V 15mm±0.5ppm (RMS)
    Data Storage
    • Expandable: TF card, up to 128GB
    • Data transfer: Type-C USB, TCP/IP, FTP/HTTP, SSL download
    • Differential formats: RTCM 2.1-3.4, NMEA 0183, CMR, CMR+, NTRIP Caster/Client/Server, Email, Trimble GSOF
    • Static data formats: DAT, RINEX 2.x/3.x, BINEX
    • GPS output: VRS, FKP, MAC, GSM/GPRS, UHF external optional
    Communication
    • Ethernet: RJ45
    • Data port: M12-12 (RS232, RS485, CAN/RS232, PPS, EVENT, GND)
    • GNSS/Network antenna: TNC
    • Wi-Fi: 2.4G/5G, 802.11 a/b/g/n/ac
    • Bluetooth: BT2.1+EDR, 3.0, 4.1LE/4.2 BLE
    Interfaces
    • Buttons: Power, Reset
    • LED indicators: Ethernet, Satellite, Datalink, Recording, Power
    Power
    • Interface: Type-C
    • Battery: 15V/1.2A max 18W, 10.8V 3,400mAh
    • External supply: 2-pin LEMO, 9-18V, 12V DC
    Physical
    • Dimensions: 61.35mm(H) × 117.98mm(W)
    • Weight: 839g
    • Operating: -40°C to 65°C | Storage: -40°C to 80°C
    • IP68 water and dust proof, 5-95% non-condensing humidity, 1.5m drop rated

    Keep up to date with Tri-Site News

    STEC SV5 Datasheet PDF ↓

    Use Cases

    CORS & Reference Station Networks

    Construction Site Environments

    Remote & Unattended Monitoring Sites

    Network RTK Infrastructure Deployments
