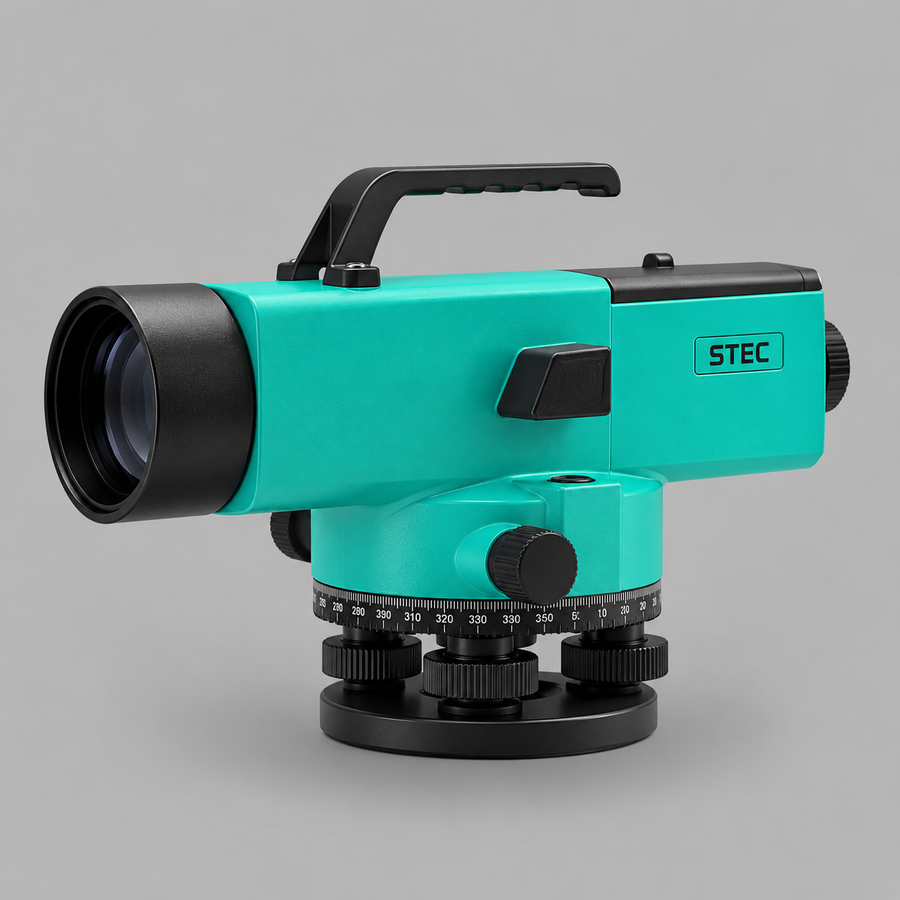

The DSZ 1 is STEC's top-tier automatic level, built around a high-resolution 55x magnification telescope — the strongest in the DSZ series — delivering 0.7mm accuracy over 1km of levelling. A magnetic-damped compensator and stable aluminium axis keep readings reliable, backed by an endurable industrial design rated to IP65 for genuine site durability.
With a 55mm effective objective aperture and a 1° field of view, the DSZ 1 is built for precision work where accuracy genuinely matters, operating reliably from -20°C to +50°C.
Key Features
- 55x magnification, the highest in the DSZ range
- 0.7mm standard deviation over 1km
- Magnetic-damped compensator, ±12' range, ±0.3" accuracy
- Stable aluminium axis construction
- IP65 rated for water and dust protection
- Working range: -20°C to +50°C
- Weighs 2.85kg
