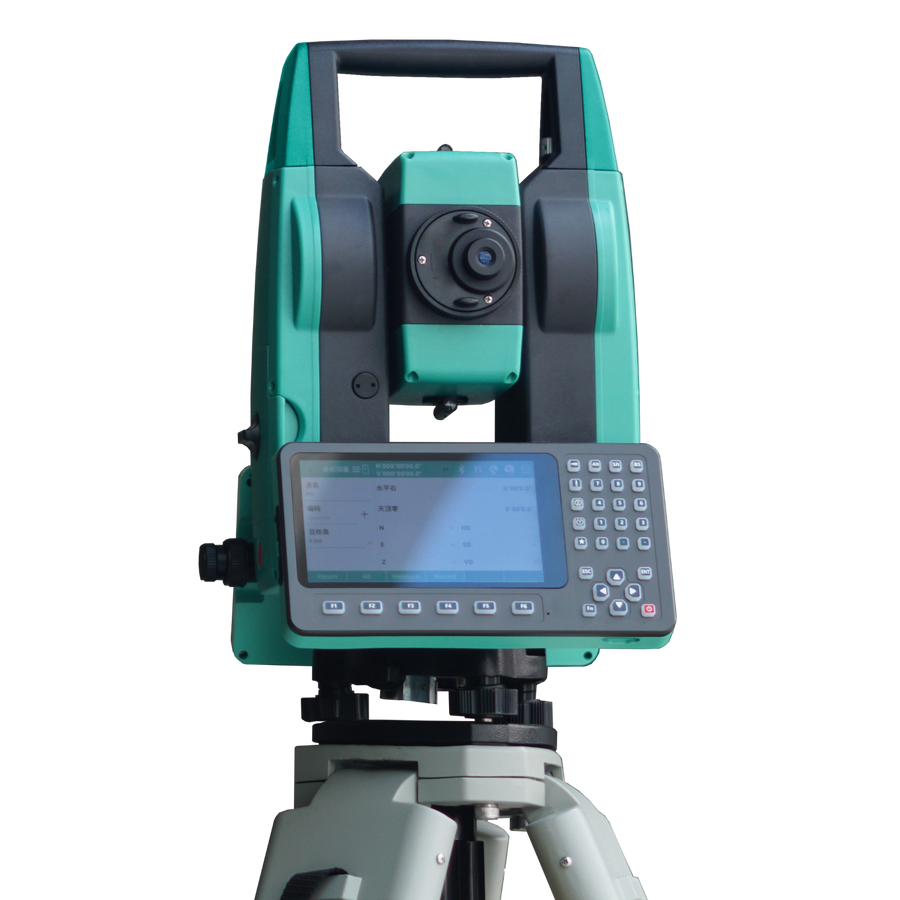

STEC AXIS 8 Android Total Station

Name: STEC AXIS 8 Android Total Station
Brand: STEC
Price: 1.00 GBP
Availability: InStock

Vendor: STEC Type: Total Stations

The STEC AXIS 8 is an Android total station delivering 2″ accuracy and dual-laser EDM, with a fully onboard CAD and stakeout workflow that keeps everything in one device. Intuitive and capable, it suits everyday setting-out and topographic survey. Buy or hire from Tri-Site Survey Equipment.

£1.00

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Request a Demo | Hire This | Enquire About This Product →

Product Features

Line & Curve Stakeout

Step-by-step graphic guidance shows trajectories and deviations in real time, ensuring accuracy even in complex layouts.

CAD Stakeout Onboard

Import CAD drawings directly, avoiding file conversion errors and ensuring precise consistency with design plans

Professional Database

Five dedicated databases - Points, Stakeout, Stations, Lines, and Curves — keep all your data clear, well-organized, and easy to retrieve.

Advanced Road Program

Supports both Element and Intersection methods, covering straight and curved segments for municipal or highway projects.

Detailed Specifications

Dual-Laser EDM, Measure it Faster

With dual-laser EDM, AXIS 8 reaches 2" angular and 2+2ppm distance accuracy.Measure more points in less time, faster, quieter, and with the class-leading precision.

Larger Screen, Smarter Control

AXIS 8, featuring a 5.5-inch high-resolution touchscreen and 34 keys with shortcuts, delivers superior control—making every field task faster, clearer, and more efficient.

Boost Your Efficiency With Android 14 OS

AXIS 8 offers a smoother and more intuitive user experience. It enables direct online file sharing across devices — no USB or external drives needed.

Precision & Range

2" angular accuracy, 2+2ppm distance accuracy
5,000m single-prism range
1,000m non-prism range at ±(3mm+2mm×D)
Measuring times: 0.3s fine, 0.1s tracking

Distance Measurement

Dual-laser EDM system for faster, quieter point capture

Display & Control

5.5-inch dual touchscreen (1280×720)
Android 14
34 physical keys with hotkey shortcuts
Built-in CAD stakeout with direct CAD file import

Connectivity

USB Type-C
Bluetooth BLE 5.0
TF card
SIM card slot
WiFi

Build

IP55 rated
10-hour battery duration
Operating range: -20°C to +50°C
6.5kg
