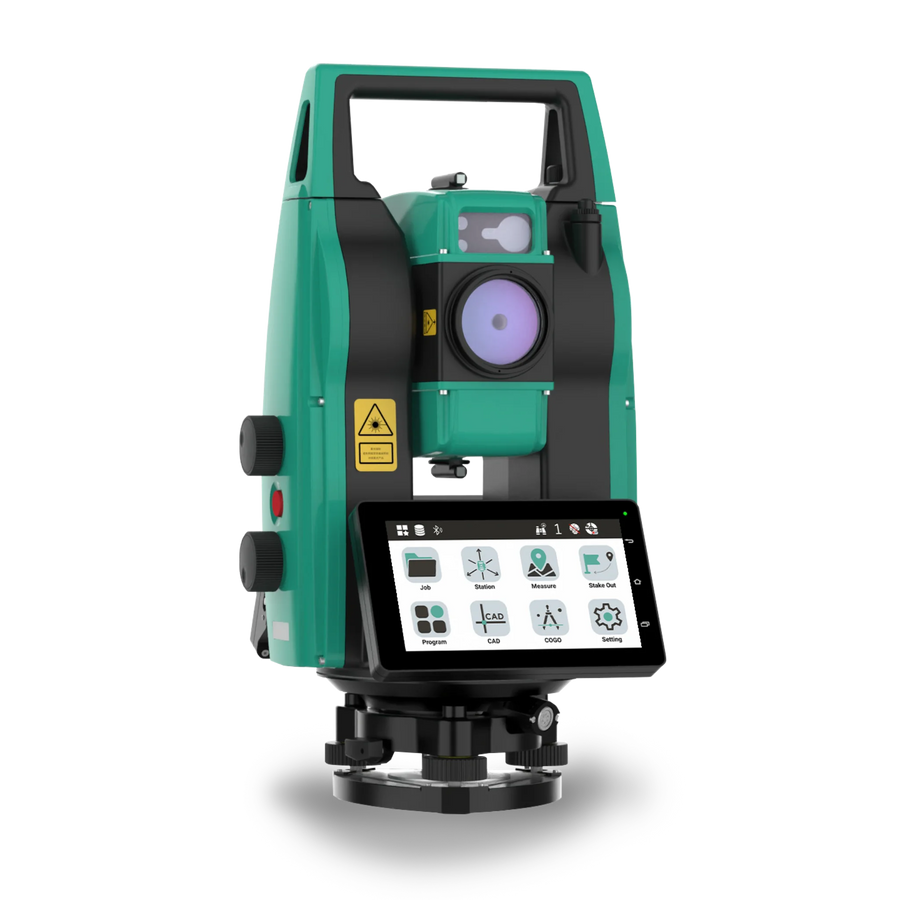

STEC AXIS 10 / AXIS 10M Robotic Total Station

Name: STEC AXIS 10 / AXIS 10M Robotic Total Station
Brand: STEC
Price: 1.00 GBP
Availability: InStock

Vendor: STEC Type: Total Stations

The STEC AXIS 10 is a robotic total station delivering 0.5″ angular accuracy and 1000m Auto Prism Recognise for confident one-person surveying. An open SDK allows custom integration, and the AXIS 10M variant is available for structural and deformation monitoring. Buy or hire from Tri-Site Survey Equipment's team of working surveyors.

£1.00

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Request a Demo | Hire This | Enquire About This Product →

Product Features

Unique One-Man Solution

With its exclusive long-range Bluetooth (600m), AXIS10 allows a single operator to control the entire surveying process without the need for additional personnel.

STEC-MOS

STEC-MOS is a professional automated monitoring software. The system features automatic learning, automatic measurement, automatic data processing, and remote maintenance, enabling real-time data analysis and processing to provide timely warnings.

More Powerful Programs

The programs, like CAD stake out, ensuring that construction projects align perfectly with design plans. With AXIS10, you can achieve higher productivity, better project coordination, and a smoother workflow from start to finish.

More Intuitive Functionality

Capture the target more easily with icons that display the measurement status in real-time, or with graphic guidance like an electronic compass.

Detailed Specifications

Torque Drive

Let’s Work in Silence. Rotating at up to 180º/s , AXIS10 ensures high-dynamic performance with its extraordinary xTrak technology, which is smoother and faster than others.

Prism Recognise

Automatically recognizes and measures the prism at distances up to 1000m.

Prism Search

Scan and detect the prism within 300m from the entire working site, saving almost 2/3 of the measurement steps compared to a manual total station.

Prism Lock

Follow and lock a moving prism at 20°/s, which eliminate the need for standing around.

Flexible Connectivity

AXIS10 offers superior connectivity with USB, Wi-Fi, Bluetooth, long-range Bluetooth, serial port, and a SIM card slot, enabling effortless data exchange and remote control.

Touch-to-Aim Camera

Just simply tap on the screen to instantly direct AXIS10 to aiming the target. The 5-megapixel camera also helps to record the images or videos of target when necessary.

Work Further with S Pad

8-inch display with 500 nits brightness ensures clear visibility, even in bright light. 600m remote control makes single-person operations efficient and effortless.

Precision & Range

0.5"/1" angular accuracy
3,500m single-prism range at 0.8+1ppm (AXIS 10M) or 1+1ppm (AXIS 10) distance accuracy
1,000m non-prism range at 3mm+2ppm

Motorisation & Tracking (xTrak)

180°/s torque-drive motorization
Auto prism recognition up to 1,000m (3,000m on the AXIS 10M)
Prism search across 300m
Prism lock at 20°/s tracking speed

Display & Control

6.0-inch color touchscreen
Android 9.0
Touch-to-aim 5MP camera
8-inch tablet with 500 nits brightness, 600m remote control range

Connectivity

USB, WiFi, Bluetooth, long-range Bluetooth, serial port, SIM card slot

Build

IP65 rated
8-hour working duration
Operating range -20°C to +50°C
9.3kg
