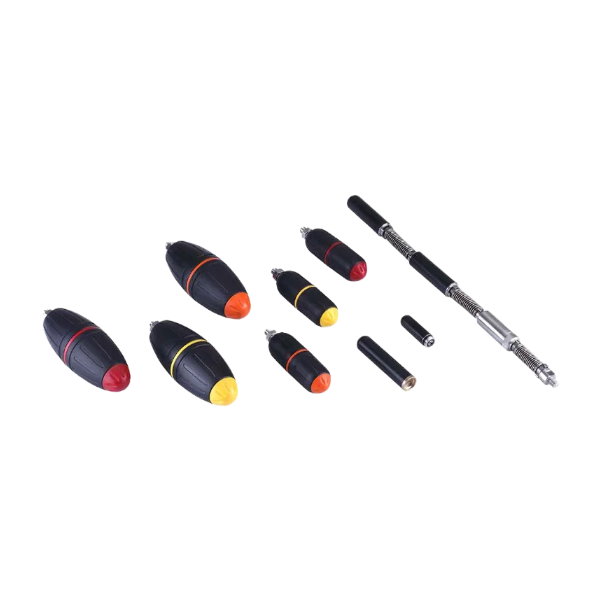

Sondes are small self-contained battery powered transmitters. Sondes are propelled through non-metallic pipes and ducts and can be located on the surface by a sonde locator or buried utility locator with a sonde mode. Sondes are also built into other products such as a sewer push camera, robotic crawler camera, or attached to a jetter hose.
Sondes come in a variety of sizes which ties into how deep they can be located. Different frequencies are available which allow sondes to be located in metallic or non-metallic pipes and ducts.
Physical Properties
- D18-33-SR44 Sonde
- 0.75in (18mm) x 3.1in (80mm) long, 33 kHz, range 12ft (4m).
- 2 x button cell batteries.
- D38-33-AA Sonde
- 1.5in (38mm) x 4.1in (105mm) long, 33 kHz, range 15ft (5m).
- 1 x AA battery.
- D64-33-LR61 Sonde
- 2.5in (64mm) x 7.3in (186mm) long, 33 kHz, range 24ft (8m).
- 1 x LR61 battery.
- D23F-512-AA / D23F-640-AA Sonde
- 1in (23mm) x 18in (456mm) long, range 20ft (7m).
- “Flexible (3 section) Sonde with optional 512Hz or 640Hz for use in cast iron pipes”.
- 1 x AA battery.
