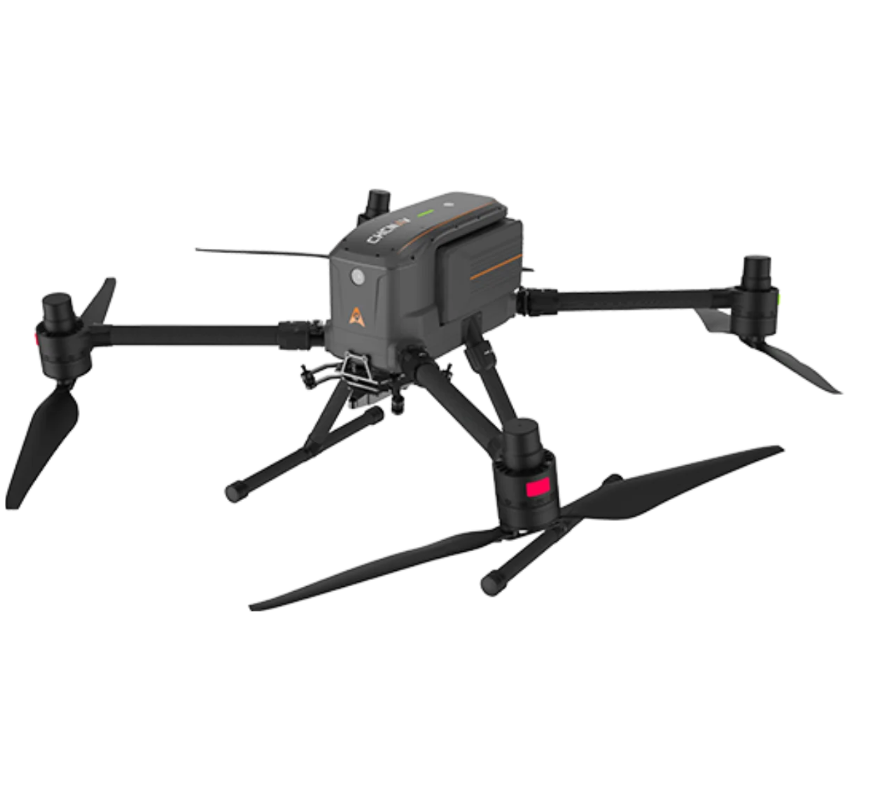

CHCNAV X500 Multirotor Drone

Name: CHCNAV X500 Multirotor Drone
Brand: CHCNAV
Price: 11690.00 GBP
Availability: InStock

Vendor: CHCNAV Type: Drones

The CHCNAV X500 is a professional multirotor UAV engineered for exceptional payload capacity and endurance. With advanced flight control and support for survey-grade LiDAR and camera payloads, it's a dependable platform for aerial mapping and inspection. Supplied and supported in the UK by Tri-Site Survey Equipment's team of working surveyors.

£11,690.00

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Request a Demo | Hire This | Enquire About This Product →

Product Features

Reliable Design

Adjusts altitude to avoid crashes. Landing even if a propeller malfunctions.

Hot-Swap Batteries

Seamless takeoffs and continuous power for multiple flights.

High Performance

5kg payload capacity and flight time of 58* minutes

Lightweight and Portable

Single-person operation and easy transport.

Detailed Specifications

High Performance

Up to 5 kg payload capacity
Up to 58 minutes flight time
50 minutes with AA10 LiDAR payload
IP55-rated for demanding environments
Withstands winds up to 12 m/s

Optimal Flight Safety

Dual GNSS and triple IMU redundancy
Dual-redundant flight control system
Intelligent obstacle detection and avoidance
Detects trees, buildings and towers
V-SLAM supports precision landings on moving vehicles and vessels

Efficient Energy System

Includes BS10 six-battery charging station
Charges from 20% to 90% in 40 minutes
Supports continuous field operation
Fast battery turnaround
Minimises downtime between flights

Versatile Payload Options

Supports up to 3 simultaneous payloads
Compatible with CHCNAV LiDARs and cameras
Open SDK for third-party integrations
Built on the MAVLink protocol
Easily customised for different missions

Long-Range Operation

Up to 20 km transmission range
Low-latency HD video transmission
1080p FPV live video feed
Large 10.1" remote controller
Reliable long-distance operation

Intelligent Flight Software

Powered by CHCNAV SmartGo
Supports rectangle, strip, polygon and façade flight paths
Real-time flight status and obstacle monitoring
Optimised for BVLOS operations
Improves mission planning and safety

Performance

Payload Capacity: 5kg max
Flight Time: 58 min (up to 50 min with CHCNAV AA10 LiDAR)
Max Wind Resistance: 12 m/s
Concurrent Payloads: Up to 3
Protection Rating: IP55 (dust and limited water resistance)

Aircraft

Type: Quadcopter multirotor
Positioning: Dual GNSS
IMU: Triple IMU redundancy
Flight Control: Dual-redundant
Obstacle Avoidance: Detects trees, buildings and towers
Visual Positioning: V-SLAM (landing on moving vehicles/vessels)
PPK: Supported with single-camera payload

Battery & Charging

Batteries: Double hot-swap
Charging Station: BS10, holds up to 6 batteries
Charging Speed: 20% to 90% in 40 minutes
Battery Station: Functions as a field power bank

Data Link & Control

Transmission Range: Up to 20km
Video: 1080p HD FPV, low-latency
Remote Controller: 10.1" large-screen
Protocol: MAVLink (universal)
Payload Interface: Open SDK for third-party integration

Software

Ground Control: CHCNAV SmartGo
Flight Paths: Rectangular, strip, polygonal, façade
Monitoring: Real-time status, heading and obstacle alerts
BVLOS: Supported

Compatibility

CHCNAV LiDARs and cameras
AA10 LiDAR payload
Third-party payloads via open SDK
