CHCNAV MCNAV TX73 Basic

Name: CHCNAV MCNAV TX73 Basic
Brand: CHCNAV
Price: 9999.00 GBP
Availability: InStock

Vendor: CHCNAV

The CHCNAV MCNAV TX73 Basic is a GNSS positioning sensor for machine control, delivering the real-time RTK accuracy needed to guide excavators and other plant to design. The Basic package is a cost-effective entry point into GNSS machine guidance, helping operators grade accurately and cut rework. Supplied and supported in the UK by Tri-Site Survey Equipment's team of working surveyors.

£9,999.00

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Request a Demo | Hire This | Enquire About This Product →

Product Features

3D Customisable, Precise

First-rate 3D view with high-fidelity CAD drawings, customizable shortcuts, and real-time colour-coded progress maps — with quick switching between 2D and 3D modes.

Easy to Use

A simple wizard calibration process gets you working immediately, with remote access, troubleshooting, and data sync handled through CHCNAV's iSite cloud platform, plus OTA updates.

Excellent Compatibility

Supports a wide range of attachments and widely compatible radio protocols, including Satel external radio modules, with built-in editable coordinate system presets and support for multiple design file formats.

Reliable Hardware

High-reliability industrial design built around the high-performance MC300 receiver, an IP69K-rated IS300 IMU sensor, and an IP68 GNSS antenna with a metal bottom shell.

Detailed Specifications

High-Fidelity 3D Guidance

Full 3D view, top view, side view, and big-font information view, with high-fidelity CAD drawings for genuinely clear design reference.

Layer-Based Elevation & Horizontal Guidance

Full control over data visibility, letting operators focus on exactly the guidance they need for the task at hand

Wide Attachment Compatibility

Supports standard bucket, tilt bucket, tiltrotator, and trapezoidal bucket, with separated calibration so components can be freely combined.

Cloud-Connected Workflow

A local region-based cloud platform enables file distribution and remote access from anywhere, cutting time lost to on-site file transfers.

Quick Field Surface Design

Design surfaces directly in the field, streamlining the workflow without needing to return to the office.

Industrial-Grade Reliability

IP69K and IP68-rated components built to withstand genuine construction site conditions, not just office/lab environments.

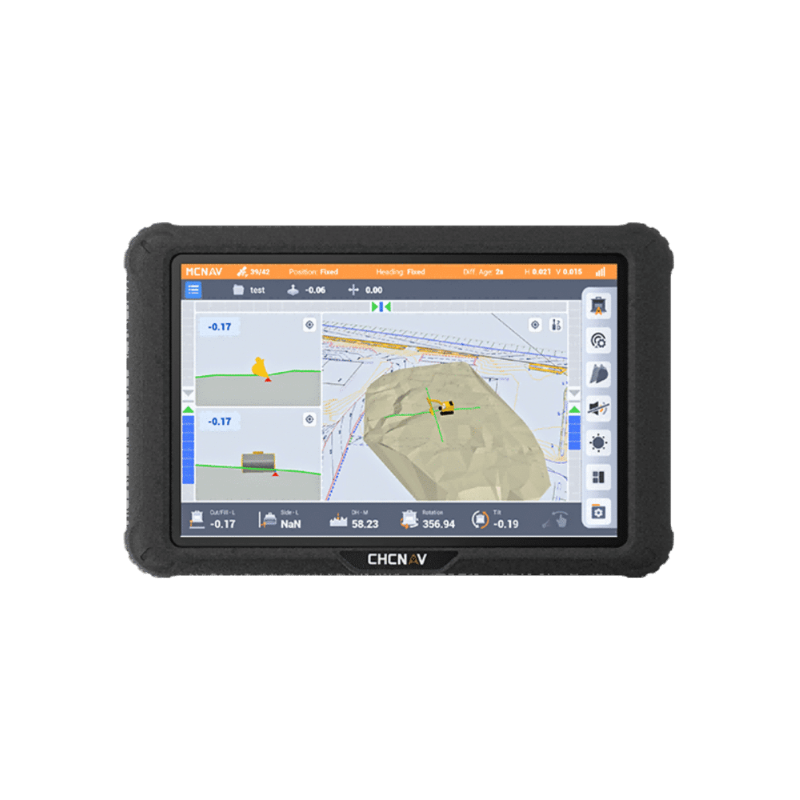

MCPad300 Display

Size: 281x181x42mm | Weight: 1.5kg
Screen: 10.1", 1920×1200
System: Android 14, 8-core up to 2.2GHz, 6+64GB
Operating: -30°C to +60°C | IP67

MC300 Receiver

Size: 215×154×58mm | Weight: 1.11kg
Power: 7-36V DC
RTK: Horizontal 8mm+1ppm RMS, Vertical 15mm+1ppm RMS
Operating: -30°C to +65°C | IP67

IS300 IMU Sensor

Size: 48.9×109×27.3mm | Weight: 0.115kg
Static accuracy: ±0.05° | Dynamic accuracy: ±0.1°
Shock: 50G/11ms | Vibration: 7.7GRMS, 10-1000Hz
Operating: -40°C to +75°C | IP69K

AT315 GNSS Antenna

Size: 140×140×55mm | Weight: 0.7kg
Power: 3.3-12V DC | Gain: 40±2dB
Shock: 40G/11ms | Vibration: 7.7GRMS, 10-1000Hz
Operating: -40°C to +75°C | IP68

Compatitbility

Design files: LandXML, DWG, DXF, HCTX
Coordinate files: .dc, .cal, .jxl, .lok, .loc
Radio protocols: TT450S, Transparent, Satel_3AS
