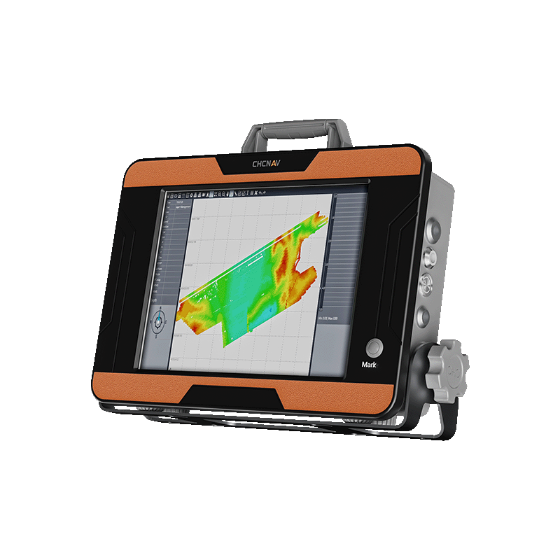

CHCNAV D390 Single-Beam Echosounder

Name: CHCNAV D390 Single-Beam Echosounder
Brand: CHCNAV
Price: 1.00 GBP
Availability: InStock

Vendor: CHCNAV Type: Payloads

The CHCNAV D390 is a portable, professional-grade single-beam hydrographic system combining echosounder hardware, a 12-inch display and CHCNAV's HydroSurvey software in a rugged aluminium enclosure. Rather than sourcing separate data collection hardware, the D390 is a complete, self-contained system — transducer, controller, display and software integrated and ready to deploy. With DGNSS and RTK positioning input support, it delivers georeferenced depth data suitable for professional hydrographic survey without an external data logger. The rugged aluminium enclosure withstands the physical demands of marine fieldwork, and the 12-inch display provides clear data visualisation in outdoor conditions.

£1.00

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Request a Demo | Hire This | Enquire About This Product →

Product Features

300m

Maximum depth range

12" Data Display

Integrated display

100 Hz

IMU sampling rate

1.2 kg

Main unit weight

Detailed Specifications

Turnkey Hydrographic System

Complete hydrographic survey solution
Includes echosounder, transducer and 12" display
HydroSurvey software included
Ready to use out of the box

Professional Depth Performance

Survey depths up to 300 m
Ideal for inland, estuary and coastal surveys
Reliable deep-water performance
Suitable for professional hydrographic projects

Survey-Grade Positioning

Integrated DGNSS & RTK positioning
Georeferenced depth measurements
No separate positioning unit required
Delivers survey-grade accuracy

Rugged Marine Design

Durable aluminium enclosure
Built for harsh marine environments
Resistant to moisture and vibration
Designed for long-term reliability

HydroSurvey Software

Integrated HydroSurvey software
Real-time data acquisition and chart plotting
Survey management on the built-in display
Simple workflow from survey to export

Echosounder

Type : Single beam, 200 kHz / 33 kHz
Range : 0.2 to 250 m @200 kHz / 0.8 to 1000 m @33 kHz
Accuracy : ±0.01 m + 0.1% x D @200 kHz / ±0.1 m + 0.1% x D @33 kHz

Physical

Weight : 4 kg (Sonar) - 1.2 kg (Deck)
Size : 228 × 156 × 75 mm (Sonar) -162 × 121 × 64 mm (Deck)

Sensors

Temperature : Yes

Positioning

IMU : Yes

Environmental

Operating : -20℃ to 60℃
Protection rating : IP67

Performances

Memory : 8 GB
