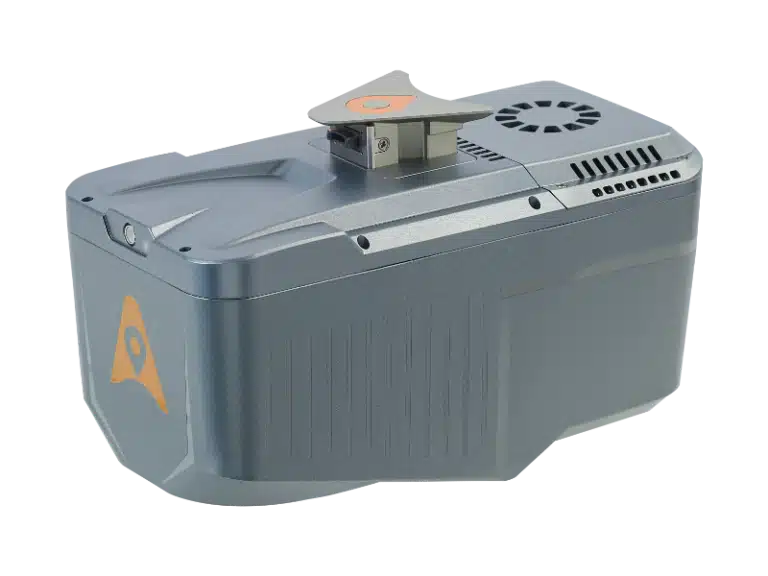

CHCNAV Alpha Air 10

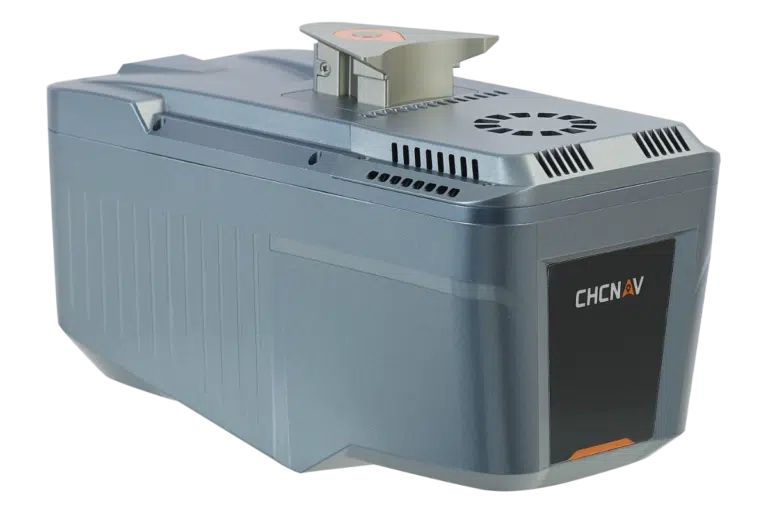

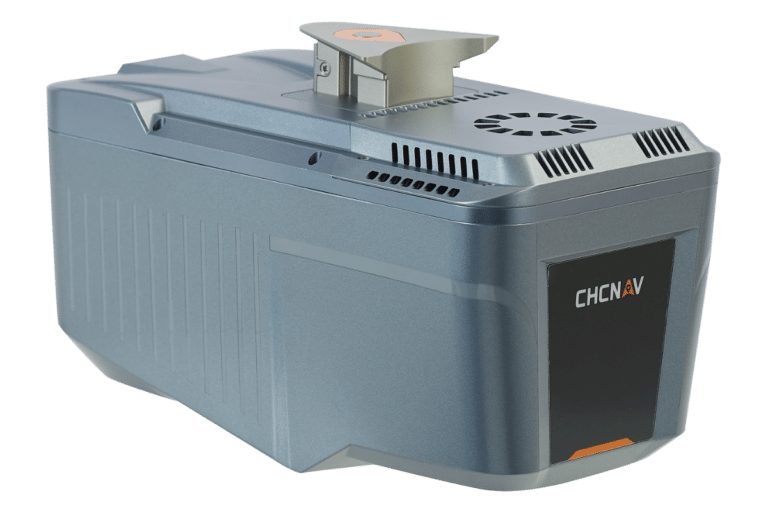

The CHCNAV AlphaAir 10 (or AA10) is an advanced aerial surveying solution that seamlessly integrates LiDAR and RGB sensors to meet the needs of professional UAV LiDAR mapping and drone photogrammetry.
UAV Products
PRECISION AND ADVANCED SCANNING CAPABILITIES
UAV Systems
SEAMLESS DATA FUSION AND REAL-TIME DATA VIEW

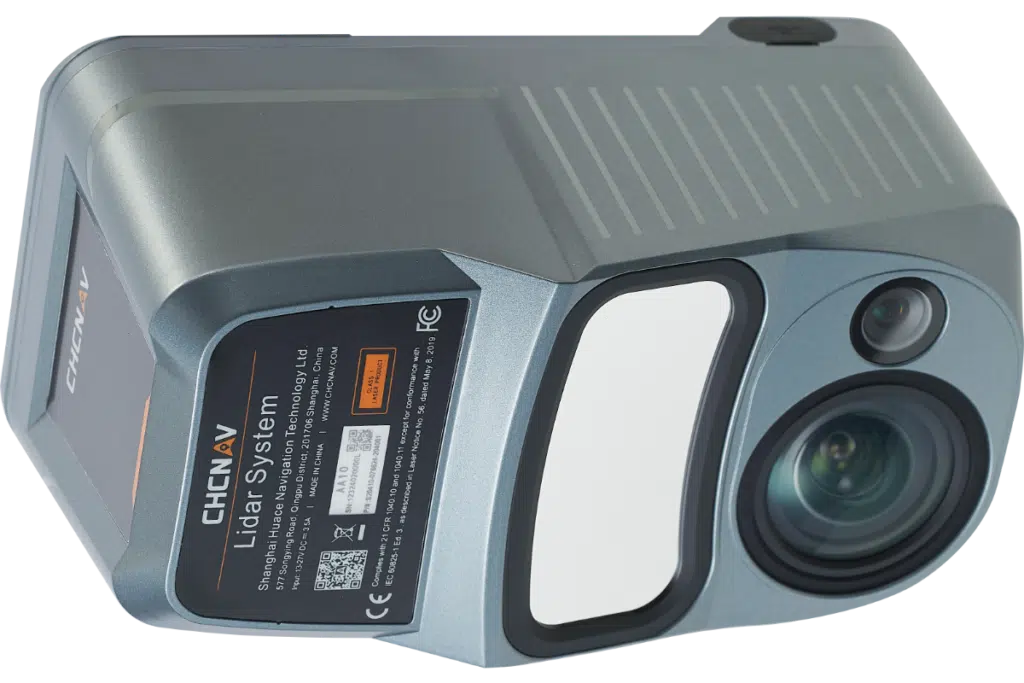

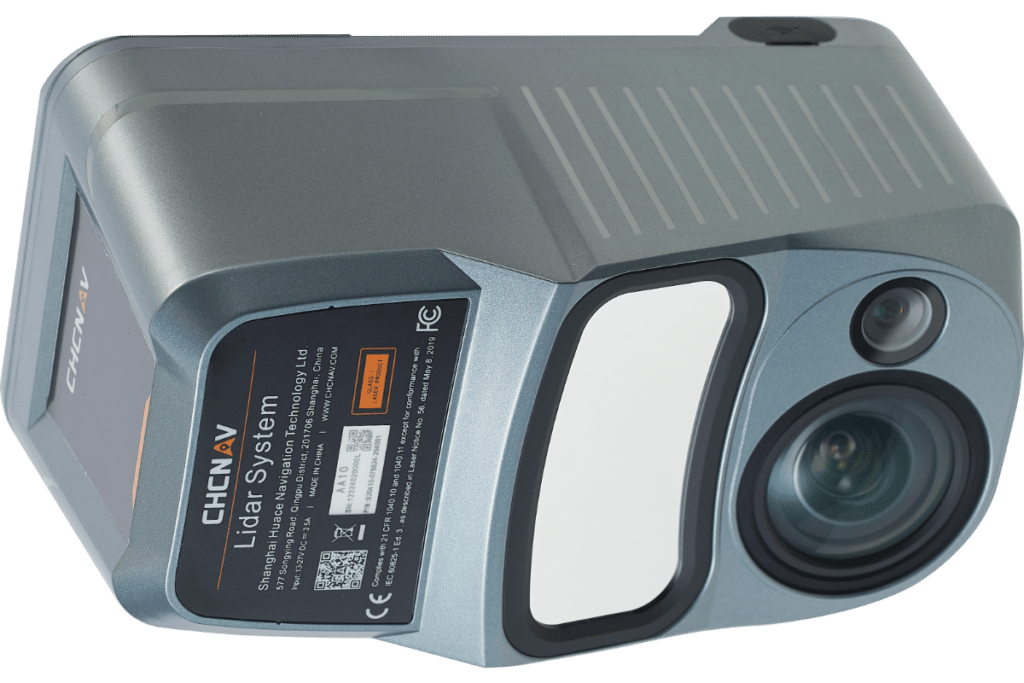

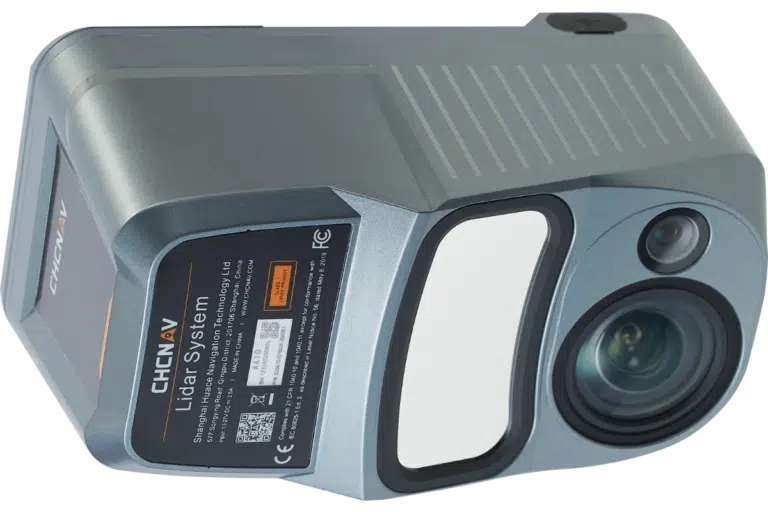

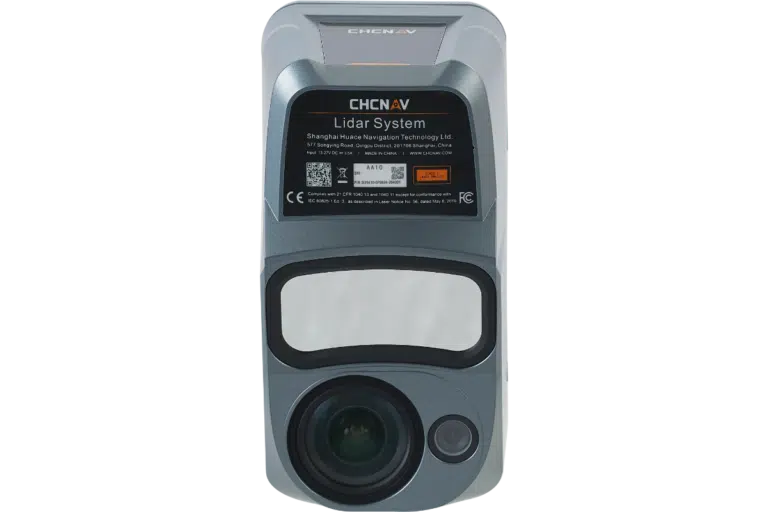

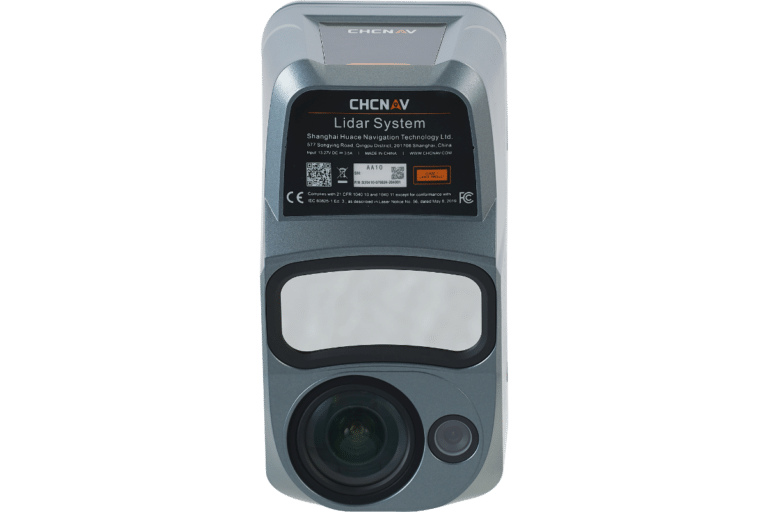

The AA10 accelerates the creation of mesh models by generating high-quality point clouds. Powered by a 45 MP orthographic internal camera, the system provides high-resolution image mapping textures for efficient 3D model reconstruction with realistic point cloud colorization. In addition, the AA10 supports automated reality capture and real-time data visualization accessible directly from the UAV controller, enabling informed decision-making throughout the survey operation. Complementing the solution, CoPre and CoProcess software suite streamline post-processing and feature extraction with an easy-to-use and efficient data workflow.
ENHANCED VEGETATION PENETRATION
Leveraging advanced multi-target capabilities, the AA10 features up to 8 target echoes, enhancing its ability to penetrate dense vegetation. This feature allows the system to effectively acquire ground surfaces, resulting in accurate Digital Elevation Models (DEMs) and Digital Surface Models (DSMs), even in challenging environments with dense vegetation.
EFFICIENT DESIGN AND ROBUSTNESS

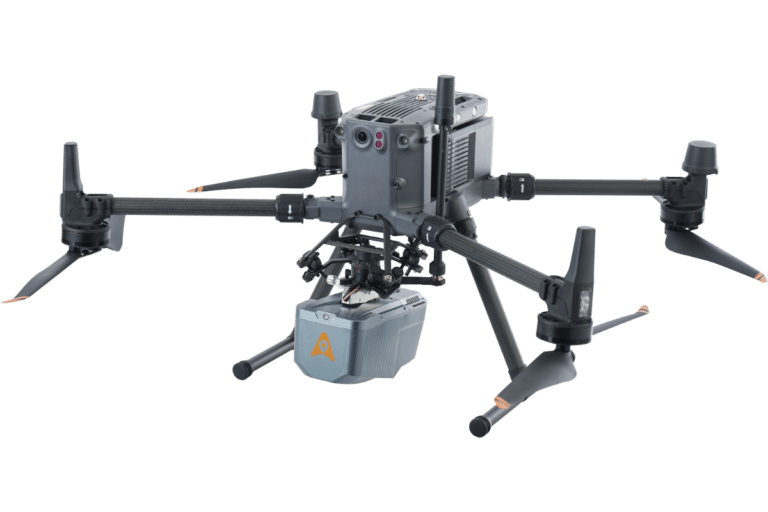

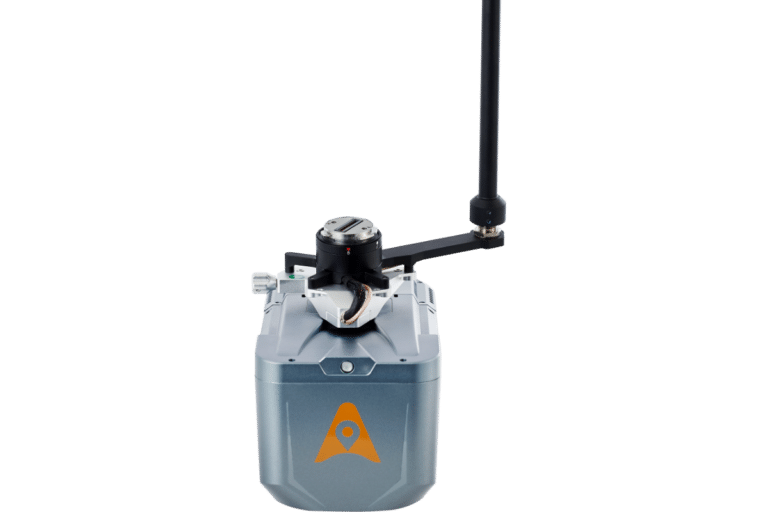

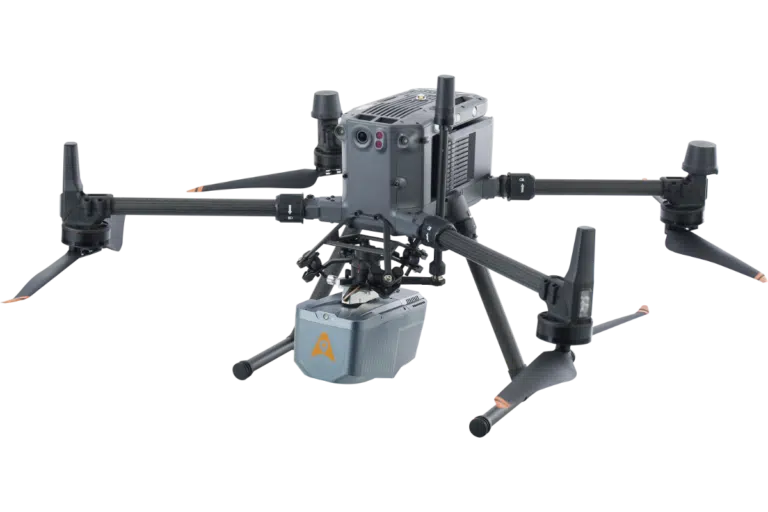

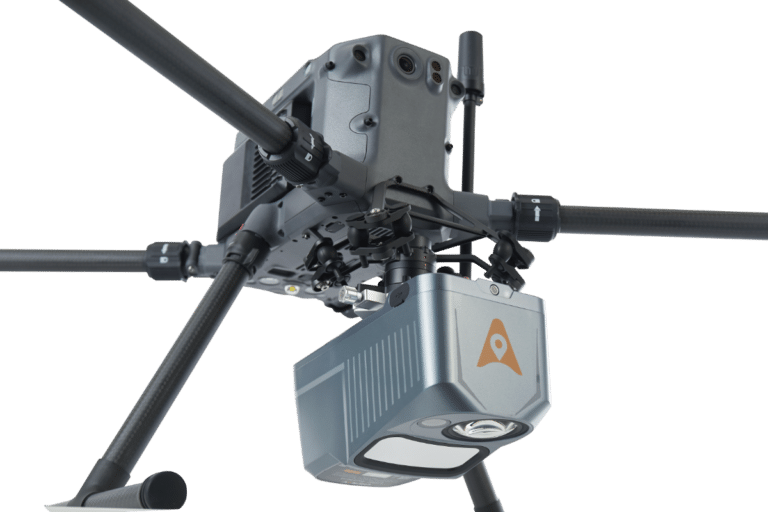

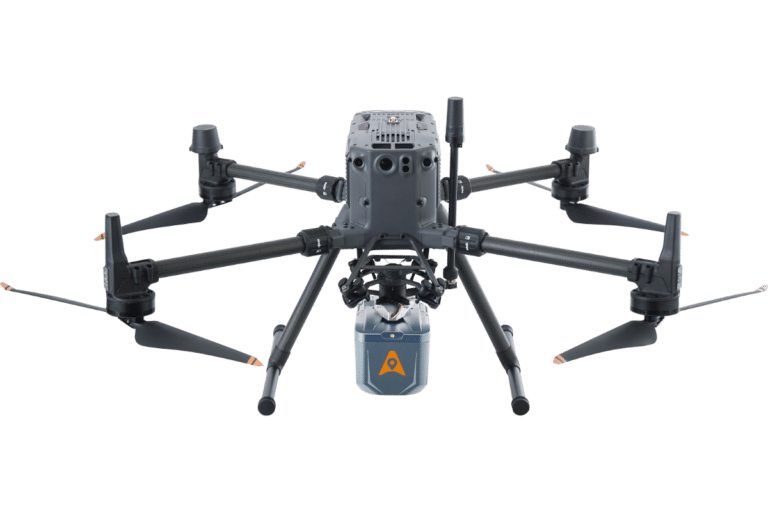

The AA10 LiDAR system is impressively lightweight and compact, weighing just 1.55 kg, and provides a 30-minute operating time when integrated with drones such as the DJI M350. The installation process is simplified with AlphaPort’s convenient one-click connection to the UAV’s power source. The AA10 is also IP64-rated to ensure the system’s resilience, allowing it to deliver consistent, reliable performance in varying operating conditions.
Airborne LiDAR such as the AA10 offer rapid data collection over extensive areas, capturing high-density point clouds with precise elevation data. This enhances the accuracy and efficiency of topographic mapping and environmental monitoring.
AA10 uses high-frequency laser pulses and precise GNSS/IMU integration to capture detailed 3D data. The data is processed with advanced algorithms to ensure accuracy and minimize errors in the final outputs.
The AlphaAir 10 is compatible with a wide range of UAVs, including the CHCNAV BB4 and DJI Matrice series, and other third-party platforms.
The AA10 utilizes multi-target capabilities with up to 8 target echoes, effectively penetrating dense vegetation to create accurate DEMs and DSMs.
